360 - mini hypnodisc

[craig_colliass]

Re: 360 - mini hypnodisc

Where do you get the drive motors from for 360?

thanks

Craig

[Mouldy]

Re: 360 - mini hypnodisc

Hi craig,

The motors are Bosch 35w, there from a jaguar my brother had, If you look on eBay for jaguar car seat motor or assembly you'll find them. I think there used in some rover models also. They tend to go for around £15 each or £25 for the whole lower seat assembly.

The last time I ran 360 I ran it on 24v which shredded the gears by the end of the event, I'm going to look into getting some brass gears machined for them though. Was going to get a quote and order a bulk load and sell them if your interested?

Try eBay item number; 140436574824

Or search range rover seat motor, there's a few for sale for £10 buy it now with free postage

[craig_colliass]

Re: 360 - mini hypnodisc

Many thanks Dave,

I have just bought a seat frame ref the number you advised, it has 3 motors 2 look like
they will do for the drive and the third looks useful for the head actuator.

Many thanks again

Craig

[Mouldy]

Re: 360 - mini hypnodisc

Small update;

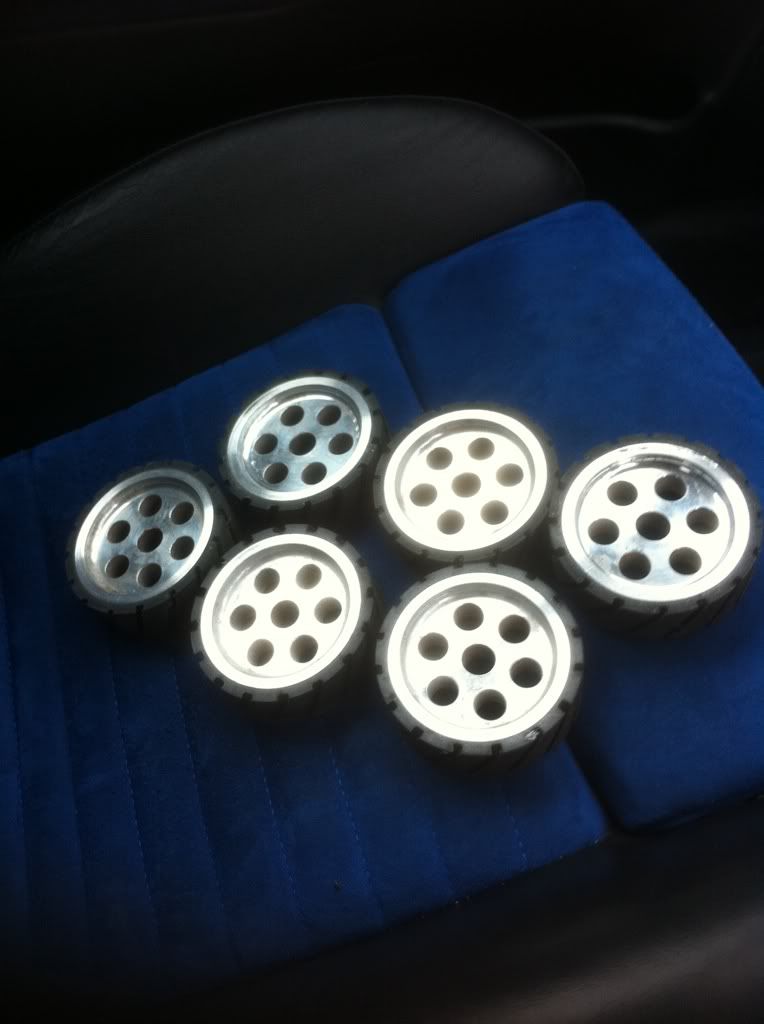

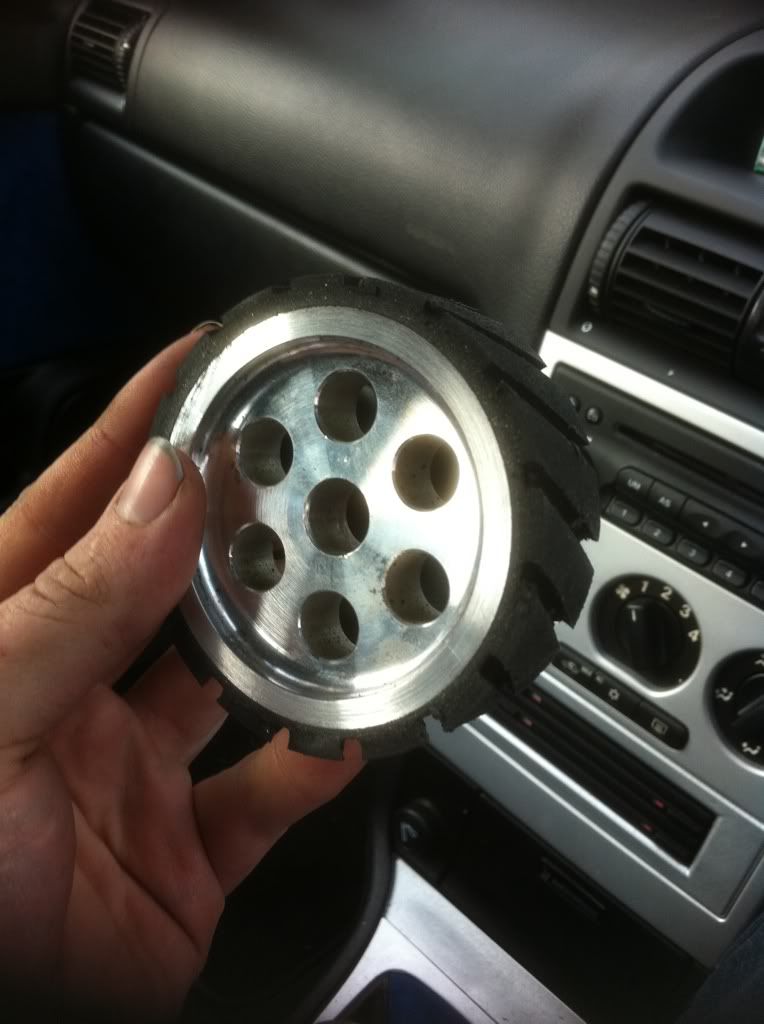

picked up my wheels, real grippy, pleased with them.



Also got my sidewinder back from repair - rick did an awesome job for a good price

[cliveb]

Re: 360 - mini hypnodisc

Nice seats Dave,a bit clean though

[Mouldy]

Re: 360 - mini hypnodisc

lol got a new car too astra 2.2 bertone, and yeah its a bit clean for me eh

picture of them next to the bot ;

[Mouldy]

Re: 360 - mini hypnodisc

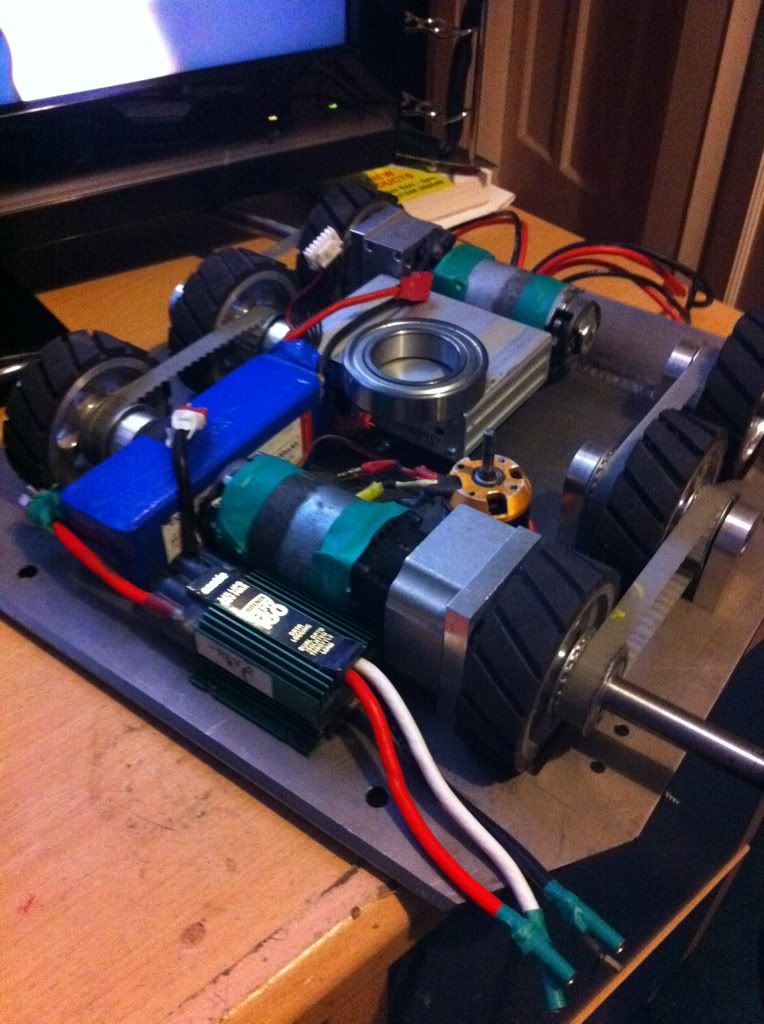

Wheels mounted and motors mounted, thanks to ed for the bearing blocks and ALK engineering for the motor mounts;

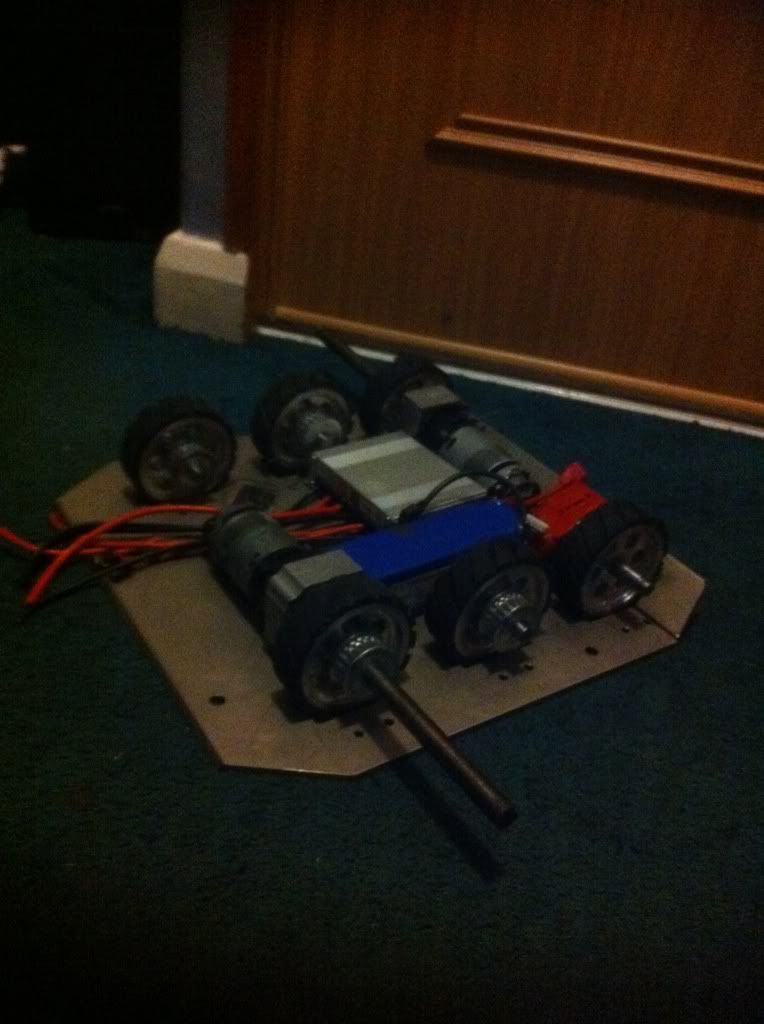

decided i can still squeeze in the bar spinner... this image shows were all the spinner gear will go, fits in with literally no room to spare. Thats not the motor ill be using in the image, its just to give an idea of how compact this robot will be... there will be another lipo sat in the back also (as per the first picture), drive to the bar will be from a single stage spur gear reduction at around 6:1 on a stub axle assembly that bolts to the lid of the robot... removable for when i want to run as just a pusher...not 100% sure how to do it yet, might use 8mm wide MOD2 spurs;


The spinning bars hopefully getting machined by Graeme lumb next weekend from 13mm titanium.

Should be able to test drive it soon, just need to cut down the motor drive shafts and wire it up.

[psycho_fling]

Re: 360 - mini hypnodisc

looks well good

you might have already said some other place but whats the base material and thickness and same for drive axles??

nice work

[Mouldy]

Re: 360 - mini hypnodisc

Base is 5mm titanium, axles are 1/2 stepping down to 10mm for the bearings with a 4mm keyway.

[jonny]

Re: 360 - mini hypnodisc

looks awesome what brushless motor are you using?

[Mouldy]

Re: 360 - mini hypnodisc

Same as 360- Scorpion HK4025-890KV running on 6s. from what ive seen from data feedback from 360s performance they can peak at over 4KW of power... more then enough for what i need.

[psychostorm]

Re: 360 - mini hypnodisc

So... This one's going to go flying out the arena as well?

[gizz]

Re: 360 - mini hypnodisc

That's one well built robot!

[Mouldy]

Re: 360 - mini hypnodisc

Hopefully not Ceri.

It has a beefy magnet in there to keep it on the floor (the only arena i can run it with the spinner on is the robochallenge arena which has a steel floor)

Also the disc will only run against robots i know it can damage... theres no point leaving it on against hardox box's etc.

[gchachanidze]

Re: 360 - mini hypnodisc

smart idea with the magbet hope it works
