Robo Challenge - 2013 FRA UK Featherweight Championships!

[Anttazz]

Re: Robo Challenge - 2013 FRA UK Featherweight Championships

yup, will need to make a feature of the flag. Just remembered that the last time it was at GSL it wasn't painted was it? Suppose it is a bit different now then.

[Eventorizon]

Re: Robo Challenge - 2013 FRA UK Featherweight Championships

Name: Conker II
Weight: 13.59Kg
Drive: 4X GR01 @ 14.8V
Weapon: 1.4kg 200mm Disc, 2 Speed 900BB @ 37V
Armour: 2mm Titanium Grade 2 Annealed [F&S], 2.5mmm Titanium Grade 6 Annealed [B]
Chassis: 2mm Titanium Grade 2 Annealed Base, 10mm & 8mm HDPE
Notes: Cost ~£800 to build
[attachment=0:1t59ckva]20121214_153301.jpg[/attachment:1t59ckva]
Name: Binky
Weight: 13.45Kg
Drive: 2 GR02 @ 14.8V
Weapon: 3.58Kg 270mm Disc, HK-4035-630Kv @ 37V
Armour: 2mm Titanium Grade 2 Annealed
Chassis: 2mm Titanium Grade 2 Annealed, 3mm 1060 Aluminium, 6082 Aluminum Blulkheads
Notes: Untested in combat but made a complete mess of a Belling Mini-Cooker

[ady]

Re: Robo Challenge - 2013 FRA UK Featherweight Championships

Nice looking spinner, with good drive too, staying up rite it will be a good contender

[mattsdragons]

Re: Robo Challenge - 2013 FRA UK Featherweight Championships

What thickness bulkheads are you using on conker?

[Eventorizon]

Re: Robo Challenge - 2013 FRA UK Featherweight Championships

Its only 10mm HDPE for the uprights but supported by 2mm Ti

Conker 3 is already in design, reusing the outer body panels, but the new bulk heads will be 20mm Aliumec to support a HK-5035-800Kv motor which is about 4x more powerful than the S900's.

[typhoon_driver]

Re: Robo Challenge - 2013 FRA UK Featherweight Championships

Surely that disc will grind?

[teamshock]

Re: Robo Challenge - 2013 FRA UK Featherweight Championships

Our two-both having work done before the UK Champs- Inertia will be looking very different this time.

Name: Inertia XL
Weight: 13.6Kg
Drive: 2xGR01's
Weapon: 2kg, Hardox disc running off 2 speed 900's new ratio and new Lipo pack to improve the spin up.
Armour: 3.2mm hardox

Will get photos after the rebuild

Our second entry may be changing if Dad gets his new one built in time but otherwise will be Heatwave

Name: Heatwave
Weight: 13.2Kg
Drive: 2x 12v drills
Weapon: FP Flipper
Armour: Various thickness HDPE

[razerdave]

Re: Robo Challenge - 2013 FRA UK Featherweight Championships

Name: Satanix 1.666
Weight: 13.5kg (at present, subject to change)
Drive: 2x Speed 900's, 5S lipo and 6:1 ratio
Weapon: Ramming wedges and various spikes
Armour: 4-17mm Mild steel
Chassis: 3.2mm Hardox
Notes: Current Annihilator champion. I will me making some changes to compensate for a few noted flaws in last years competition, and I will also give it a brand new paint job (down to bare metal and do a proper one).

[RogueTwoRobots]

Re: Robo Challenge - 2013 FRA UK Featherweight Championships

Name: Drumroll II
Weight: 12.7kg
Drive: Two 12V drill motors running at 18.5V
Weapon: 2.3kg spinning drum driven by a Scorpion HK-4020-1100kV brushless motor on a 2.5:1 ratio (roughly)
Armour: 4mm hardox, with 3-6mm steel and 8mm HDPE in places
Chassis: 15mm Nylon
Notes: Seeded 6th. Weak areas from last year rectified with other small improvements made throughout. Needs paint!



Name: Carcinus
Weight: 9.3kg (anyone got a block of lead)
Drive: Two 12V drill motors running at 19.2V
Weapon: Pair of horizontal grabbing claws powered by an 18V GLA-S actuator.
Armour: 8mm HDPE with layer of bike tyre.
Chassis: 15mm Nylon
Notes: Isn't actually half bad now. Claws work well though won't be world beaters. Tried upgrading the software of the driver to improve performance but driver is dated and is not compatible with change. Pit imminent.

[Eventorizon]

Re: Robo Challenge - 2013 FRA UK Featherweight Championships

Surely that disc will grind?

When I move to the Brushless I will be moving to a new disc with a single tooth, if you can call it that. I may cut it out for this champs though if I have the money.

[PJ-27]

Re: Robo Challenge - 2013 FRA UK Featherweight Championships

Nice depth of field!

[psychostorm]

Re: Robo Challenge - 2013 FRA UK Featherweight Championships

Name - Kaizer
Weapon - Actuator powered electric lifting forks, similar to Panic Attack
Armour - 10mm HDPE sides, Steel front
Drive - 18v drills x4, running at
24v.
Other - Only Welsh representative. Proud of paint job.

[typhoon_driver]

Re: Robo Challenge - 2013 FRA UK Featherweight Championships

Name - Boner (teehee)
Weapon - 3.8kg drum powered by a scorpion 4035 motor
Armour - Hardox bum, 22mm nylon bulkheads, titanium top and bottom
Drive - 2 gimpson GR02 36:1 on a 124mm wheel
Other - Featherweight Champion 2013

[razerdave]

Re: Robo Challenge - 2013 FRA UK Featherweight Championships

I hope I get to have a fight with Boner without us both becoming immobile at the same time :P

[Team Invade]

Re: Robo Challenge - 2013 FRA UK Featherweight Championships

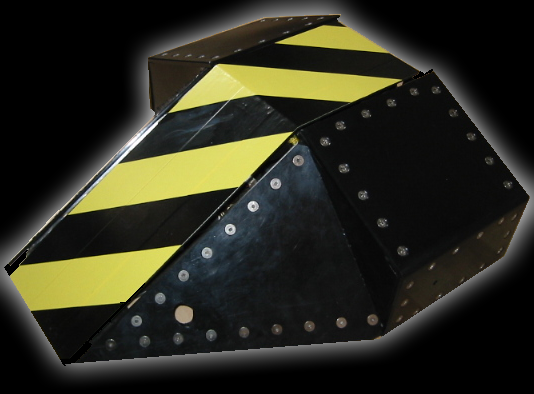

Name - Explosion
Weapon - Full pressure pneumatic flipper
Armour - Hardox base, frame and flipper with 4mm, 5mm and 6mm HDPE panels
Drive - 2x Team Whyachi TWR18 gear motors with 75mm RoboChallenge wheels
Other - Defending and twice UK No.2
