Converting an xbox controller into transmitter?

[Graw]

Wasnt really sure where to post this but has this been done by anyone? It would be interesting to see how a controller would function to drive a robot using the analog sticks and use the triggers for weapons compared to the usual transmitters.

The controllers wireless range could be an issue unless this could be coverted also but im not sure how much of the circuits ect from a normal transmitter could actually fit inside the body of an xbox controller as its generally much smaller, its got me thinking.

[R9000]

If you're willing to go to a lot of trouble, you could remove the TX and RX from the system altogether and use this http://www.instructables.com/id/Xbox...eless-Arduino/ to just generate the PWM signal to send to your ESCs. Not sure what the range is though, and there are probably easier ways. Of course you'd have to keep the Arduino and Xbox PC receiver inside the robot.

[Graw]

Guess I should have googled first! Like you said it looks a bit of a faff to do, would be cool though.

[R9000]

Yeah. I bet you could somehow just connect an Xbox 360 controller and a regular RC TX, but I'm not sure how difficult it would be.

[Roadrunner]

I've seen xbox and ps 2/3 controllers modded for quad copters which involves gutting a TX and rewiring the pcb on the controller to the TX circuitry, honestly tho for overall functionality for a robot usualy requiring no more then 5 channels then its not really worth the time or effort.

that said if you want something different check this out...

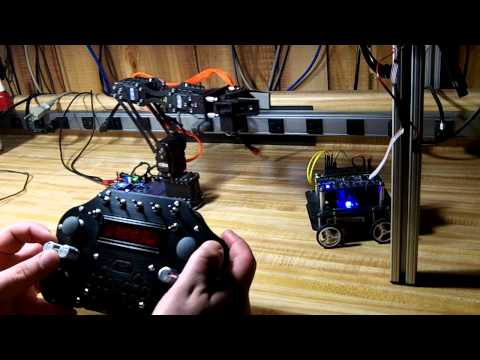

https://www.kickstarter.com/projects...eld-controller

[higgeh]

you would probably have to destroy the whole controller. But its do-able.

http://drstrangevolt.blogspot.co.uk/...ler-part1.html

best diagram of the insides i could find. wonder if you could use the triggers for throttle and the sticks for steering.

[Graw]

Those xbee controllers look sick, since the last update was jan 2013 I assume they wont see the light of day which is a shame.

Higgeh, thats what I was thinking like sticks for steering left trigger for throttle and right trigger to fire a weapon. I have to say I've not used standard transmitters a whole lot but in my head I feel like an xbox controller would be a much more efficient way of controlling a machine.

Interesting link as well I shall have a good look at this.

[Roadrunner]

https://www.quantumri.com/ $350-$370 ( pending if you want xbox sticks or TX sticks) is about £268.99-£292.05 worth it depending on your project but again DX6I or 7 is way cheaper!

[Graw]

Dude I am tempted lol, depending on how my next build goes I may do it..

Now im even more tempted, would be so cool to use the dials to adjust the power for a spinner.

[higgeh]

If I had a spare TX set I would probably try it. The interfaces are very similar the key to it would be making sure the resistances were balanced between the two.

Totally agree my hands would feel more at home on an xbox controller than on a transmitter set

[joey_picus]

How would you handle trims?

[higgeh]

trims if I am correct are just a voltage displacement on the controller (I think) therefore you would probably have to do the xbox controller to another interface that had a few potentiometers on it to control the trims.

Simple enough.

[higgeh]

IM struggling to find a circuit diagram of a radio control set. Does anyone have one?

[Graw]

http://www.circuitstoday.com/simple-...mitter-circuit is that any good mate?

If you go for it and get it done remember I'd pay good money for one lol

[higgeh]

Not the right circuit but I could talk someone through the process its pretty simple. Leave it with me I have a spare xbox controller here I might go see if I can get a cheap transmitter to try it out. (Or if anyone has anything lying around)
